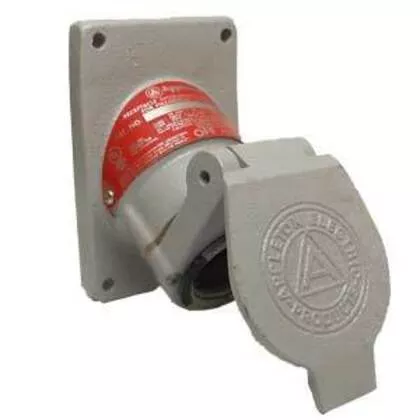

U-Line 1-Gang Replacement Receptacle, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, Mounting: Box, Motor Horsepower: 1 HP, Finish: Epoxy Powder Coat, Dimensions: 3 IN Width X 4.63 IN Height X 3.19 IN Depth, Standard: Class I, Division 1 And 2 Groups C, D, Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2 Groups F, G, Class III, UL Listed: E10784, E81751, UL Standard: 1203, 1010, 894, CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159, CSA Certified: 038644, For ECP Mating Plugs
U-Line™ Factory Sealed 20 Amp Plugs and Receptacles are used with stationary or portable electrically operated devices in hazardous locations. The ECP Interchanger plug is designed with built-in switch contacts which activate when the plug is twisted into the receptacle. This design allows the ECP plug to fit into standard NEMA 5-20R and 6-20R receptacles, but does not allow standard plugs to be used with the receptacle, ensuring that only safe connections can be made in a hazardous location.
| Material | Aluminum |
|---|---|
| Number Of Poles | 3 |
| Voltage Rating | 125 VAC |
| Amperage Rating | 20 A |
| Horsepower | 1 hp |
| NEMA Rating | NEMA 3/3R |
| Number of Wires | 2 |
| Application | For ECP mating plugs |
| Standard & Approvals | Class I, Division 1 and 2 Groups C, D, Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2 Groups F, G, Class III, CSA C22.2 No.25, C22.2 No. 30, C22.2 No.42, C22 No.159 Certified File No. 038644, RoHS Compliant, UL 1203, 1010, 894 File No. E10784, E81751 Listed |
| Dimensions | 4.63 in H x 3 in W x 3.19 in D |
